i-PiE

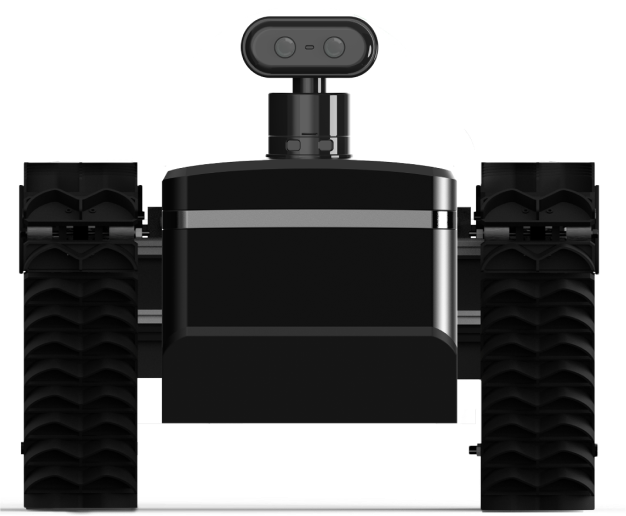

Pipe Inspection Robot, i-PiE

Introducing i-PiE
, the pipe inspection robot.

In Collaboration with Hyundai Motor Company (Ulsan Plant)

01

Compact Amphibious Robot

Optimized size for narrow and rugged
pipelines. Waterjet motor enables
operation in submerged environments.
02

Real-Time Monitoring

Equipped with LED lights, cameras,
and communication devices for
live data transmission.
03

Self-Righting Mechanism

Automatically corrects itself if
overturned inside a pipe.

i-PiE in Action

Various real-world applications of i-PiE

Hyundai Ulsan Plant

Amphibious Robot

Uses regular motors on land and waterjet
motors in submerged pipelines.

Hyundai Ulsan Plant

Smartphone Monitoring

View real-time pipe inspections directly
on a smartphone without additional
equipment.

Hyundai Ulsan Plant

Optimized for Confined Spaces

Designed to explore narrow, inaccessible
pipelines where human access is difficult.

Product Specifications

Model

i-PiE
Size

460*550*440 mm

Weight

20 kg
Motors

24V BLDC Motor

Waterjet

24V DC Motor
Sensors

IMU (Inertial Measurement Unit), Air Quality Sensor (Arim), Image Sensor
Battery

LI-ION 7S2P / 10Ah
Charging Time

3h

Usage Time

2h
